Sites of glycosylation

N- and O-linked site mapping, including 18O-labelling and LC-MS isotopic shift monitoring.

  • Determination of N– and O-linked site mapping is often a crucial part of glycoprotein characterization.
  • Enzymatic deglycosylation in the presence of 18O-labeled water results in an 18O label on the site of the recently removed N-glycan. For O-linked glycosylation, BEMAD (β- elimination followed by Michael addition with dithiothreitol) may be used.
  • Isotopic shift monitoring using LC-MS methodology helps provide information regarding the position and extent of N-linked glycosylation.

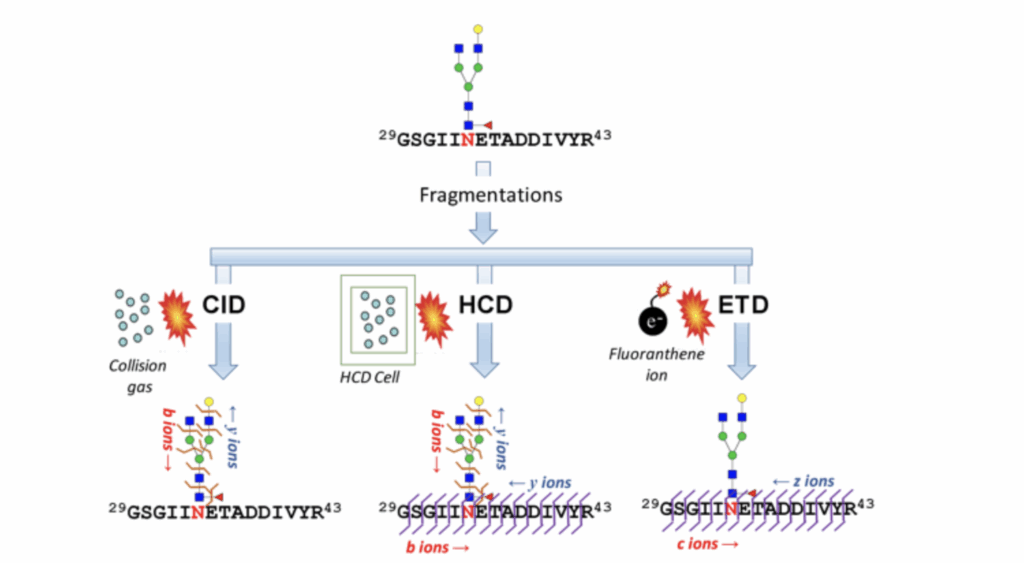

Diagram shows peptide fragmentation methods (CID, HCD, ETD) with resulting ion types (b, y, c, z) identified after each process. Peptide sequence and fragmentations are illustrated.

Request this service

Submit sample details and analytical requirements through the service request form. The facility will confirm sample amounts, turnaround and cost before work begins.
